"BIG FOOT 20"

or

2004_03_06 & 2004_03_14

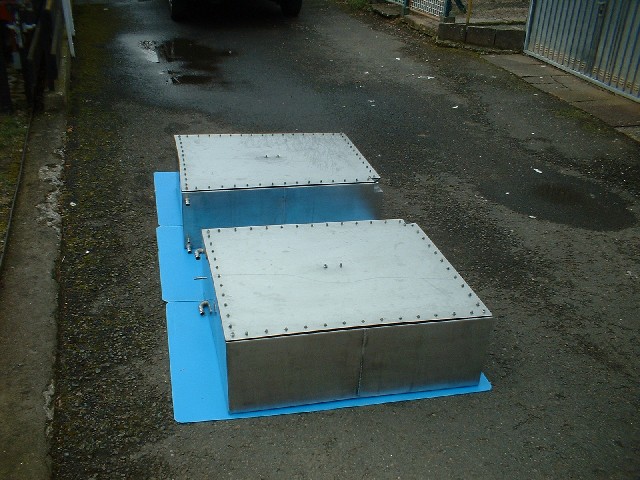

Hurra, the fresh water tanks are ready. I have made several photos: a view to the inside with the breakwater wall, with top plate mounted, the side with most of the holes for sensors for filling level, UV sterilisation and connectors for filling &  release and of course both together.



Here both last week Friday after pick up.





Here a more detailed picture with the pipe to drain the tank (on the bottom), the suction pipe (small one on the left), the filling pipe (top), lots of drills for the sensors of the water level and the big hole on the top for the wire for the UV-light sterilisation .

Die

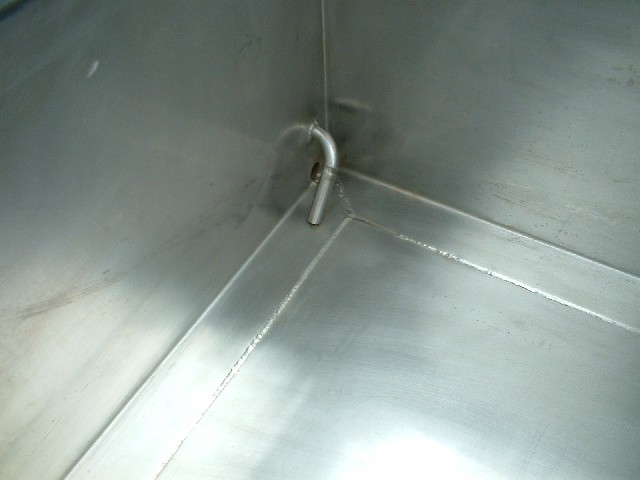

Here a more detailed picture with the suction pipe from inside.

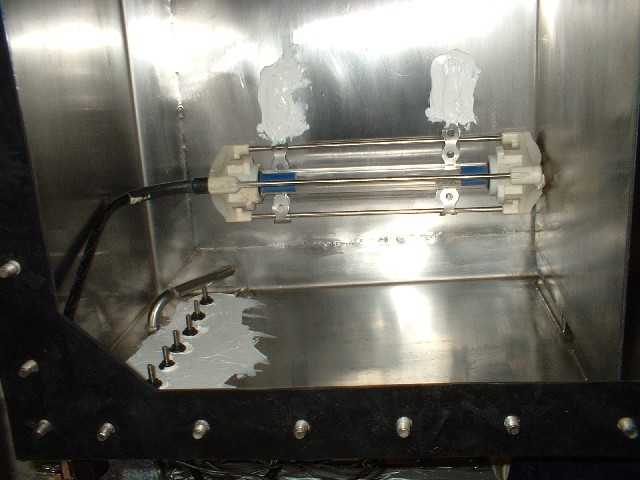

The sensors of the water level are mounted (left side). The surface underneath has been coated with a special glue to prevent flow of current between the sensors when wet. The catches for the UV-light sterilisation has been fixed as well with that glue.

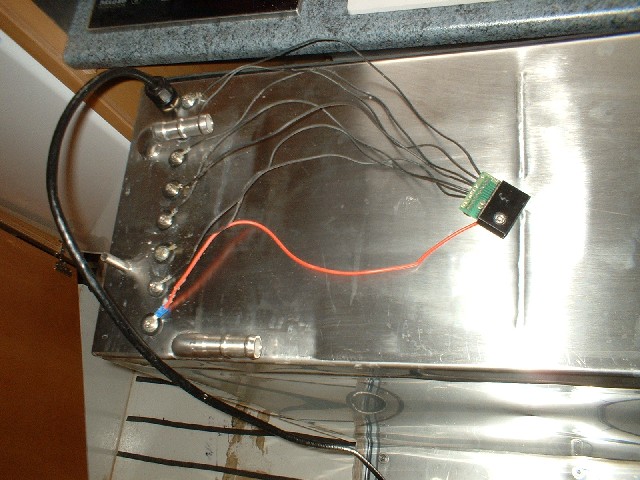

Here are the cabels of the  sensors of the water level and the wire for the UV-light sterilisation from the outside.

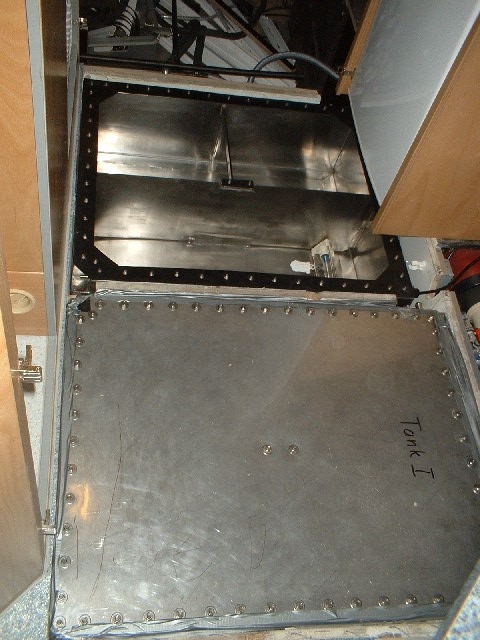

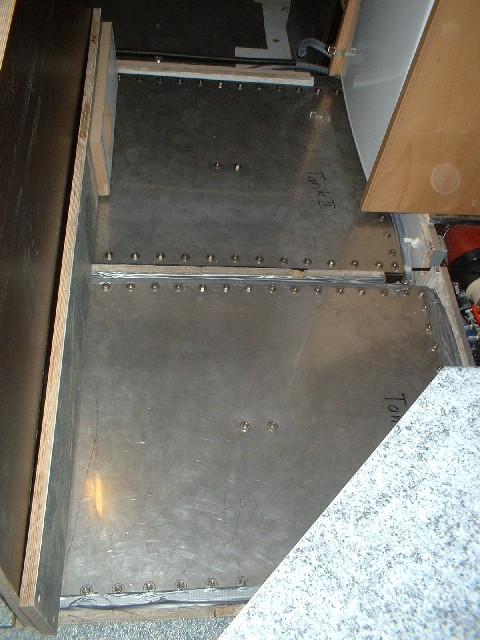

Tank 1 is meanwhile mounted and the top plate fixed. Between the wall of the tank and the wooden frame I have put an isolation plate and to prevent that small bits and peaces fall betwen the two walls I have covered the top with tape.  Tank 2 is still open.





The filling pipes are fitted with 3/4" pipes for easy disconnection if required. These pipes will be connected next week to the fixed pipes which reach to the big door of the garage.
