"BIG FOOT 04"

or

2003_02_15

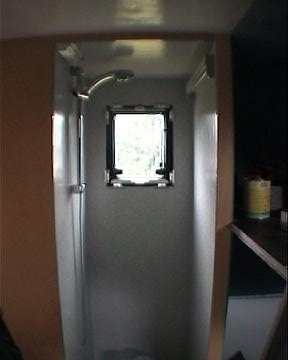

This shows the shower, which is almost finished now. Only the door, a curtain in front of the window and door, the electricity for the lighting and the mixer for the water are missing (so only one more weekend - really nothing ;-)!!)





(Note: The following three pictures and the notes have been added because of specific interest in December 2004.)(Note: The following three pictures and the notes have been added because of specific interest in December 2004.)

To achieve that the water disappeares as easily as possible when standing on uneven ground the shower has two drains.





The drains are fitted in two removable plates to allow easy access to the tank for cleaning and to get dirt out of the siphon if required. By releasing the 6 srews the plates can be taken off easily.





And here you see the sligtly modified siphon when removed mounted to the plate. I had to heat the standard shower-siphon a little bit to be able to bend it. Otherwise the top of the black plastic tube  would have been in conflict with the top cover of the tank.

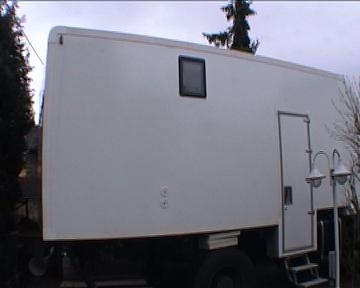

This shows the cabin from outside with the very first window (of the shower). Strange feeling when you begin to cut the hole!!

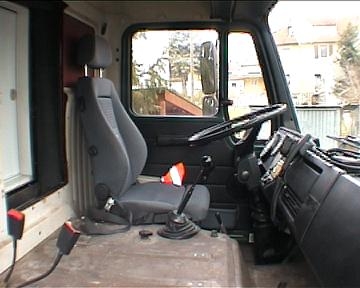

I proudly present the new Recaro seat: Air suspension, electric elevation, backbone support, heating, ... - sounds as if I am getting old. The seat for my son and my wife are the same - all found at Ebay. (Note: my wife is already an Ebay junky)

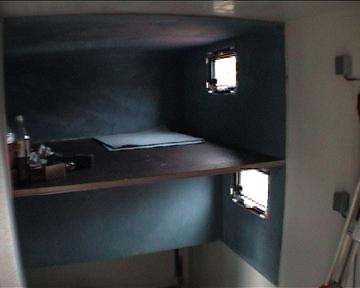

The carpet is in the sleeping area of my wife’s and mine and of our son. Windows are already mounted as well.
